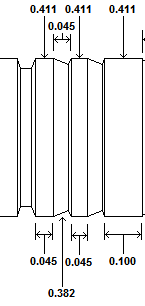

Crimp Band Detail



  • Enter the number of crimp grooves desired.
  • If the Standard crimp style is selected, the crimp Groove Dia. will be determined by the crimp Ramp< and automatically
  • calculated.


  • If the Square crimp or the Round crimp style is selected, the crimp Groove Dia. may be edited as desired.









  • If more than 1 crimp groove is selected, enter the Interval between the grooves.
  • Enter the length of the crimp groove Lower Band
  • The O.A.L. of the crimp grooves and band is automatically calculated.
  • If the Crimp Length in the Bullet Parameter section is changed, the groove depth will be recalculated.
