Barrel Chambers


These links are to images of the data entry fields and images that contain values of various styles of cartridges and chambers.

The numbers displayed on the chamber images correspond to the data entry fields for each specific chamber type.

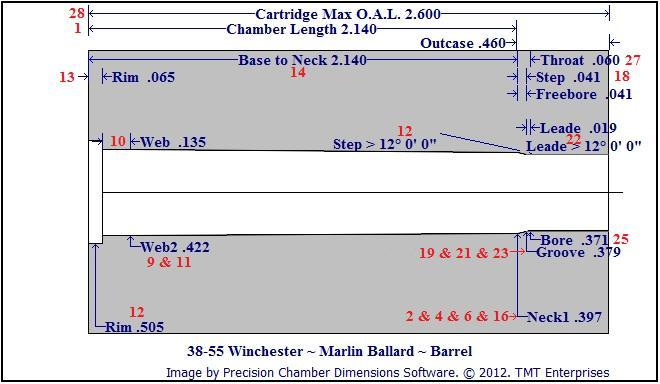

1. Straight Wall Cartridge Chamber

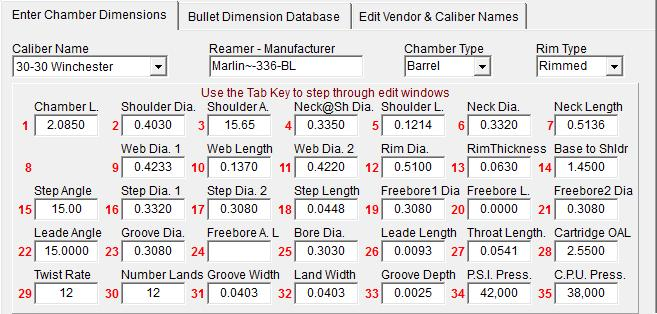

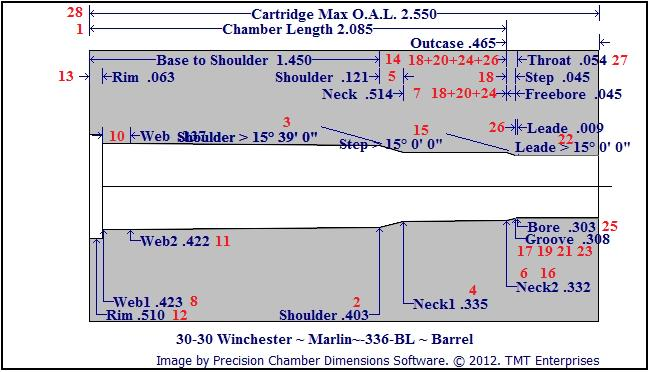

2. Bottle neck Cartridge Chamber

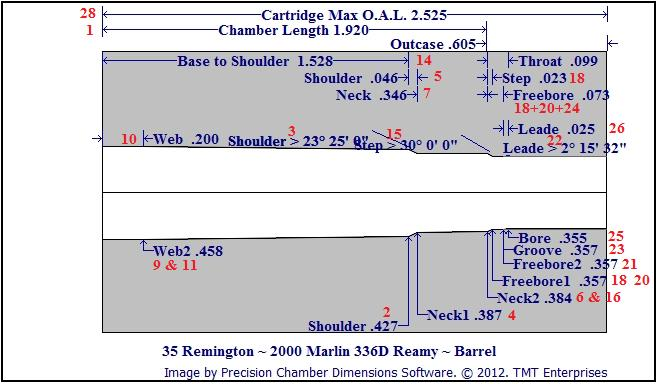

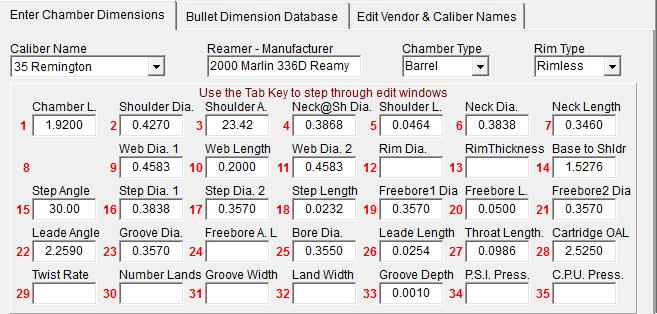

3. Rimless Cartridge Chamber

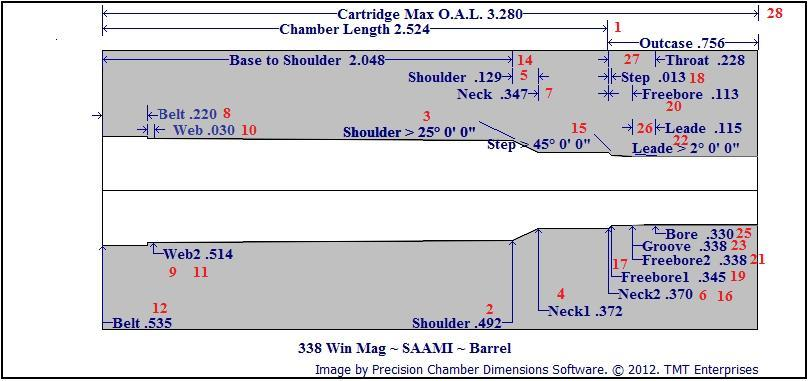

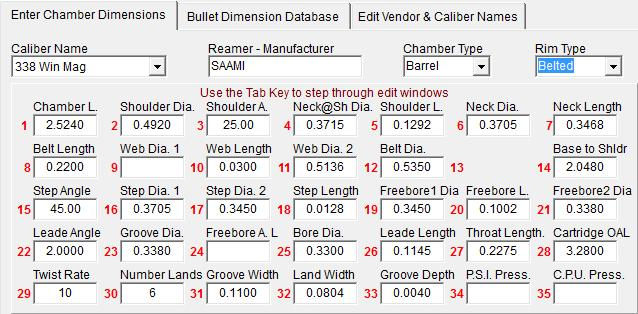

4. Belted Cartridge Chamber

Use a micrometer to obtain values  to four decimal places (0.0000") for all radial measurements







Straight Wall Cartridge Chamber Guide


Go Back to Top







Bottleneck Cartridge Chamber Guide


Go Back to Top





Rimless Cartridge Chamber Guide


Go Back to Top








Belted Cartridge Chamber Guide


Go Back to Top
