Cylinder Chambers



These links are to images of the data entry fields and images that contain values of various styles of cartridges and chambers.

The numbers displayed on the chamber images correspond to the data entry fields for each specific chamber type.

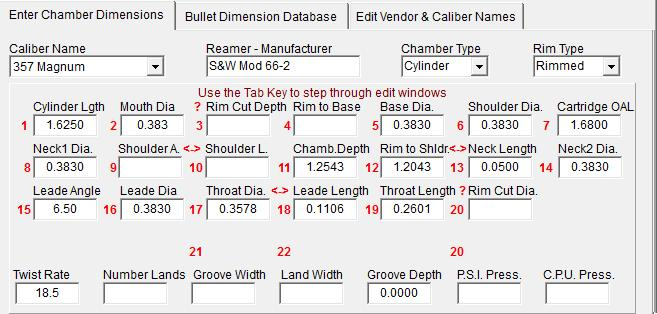

  1. Straight wall cartridge chamber

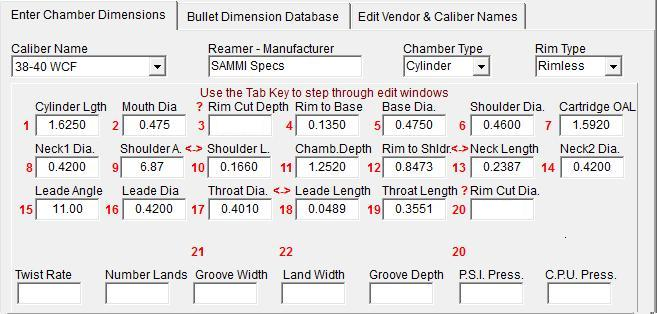

  2. Bottle neck cartridge chamber

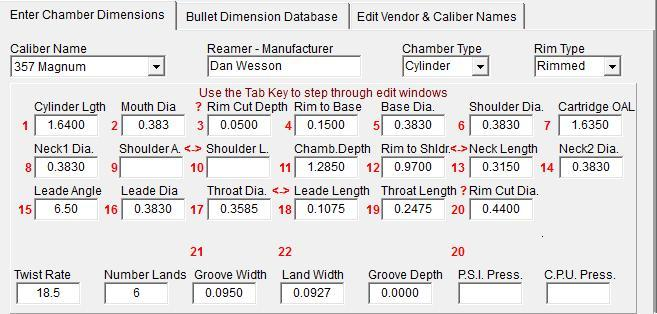

  3. Rim recess cut chamber

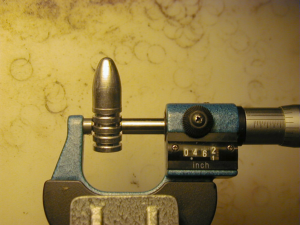

Use a micrometer to obtain values  to four decimal places (0.0000") for all radial measurements

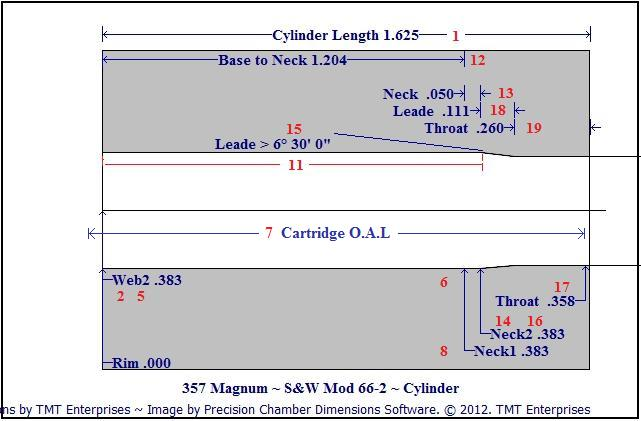

Straight Wall Cartridge Chamber


Go back to top

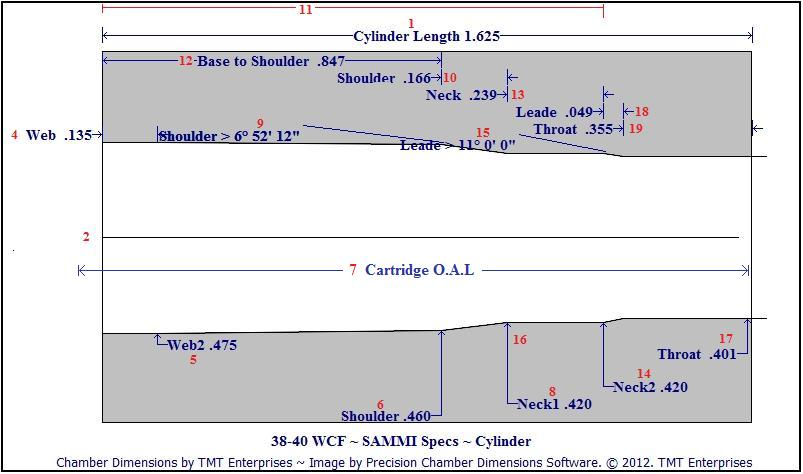

Bottleneck Cartridge Chamber


Go back to top

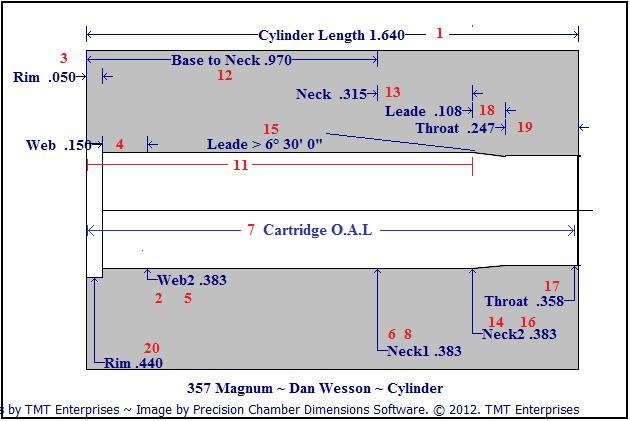

Recessed Rim Chamber


Go back to top
